Mastering Your Setup After Repair: The AlphaTheta XDJ-RX3 Functionality, Common Issues, and Essential Repairs

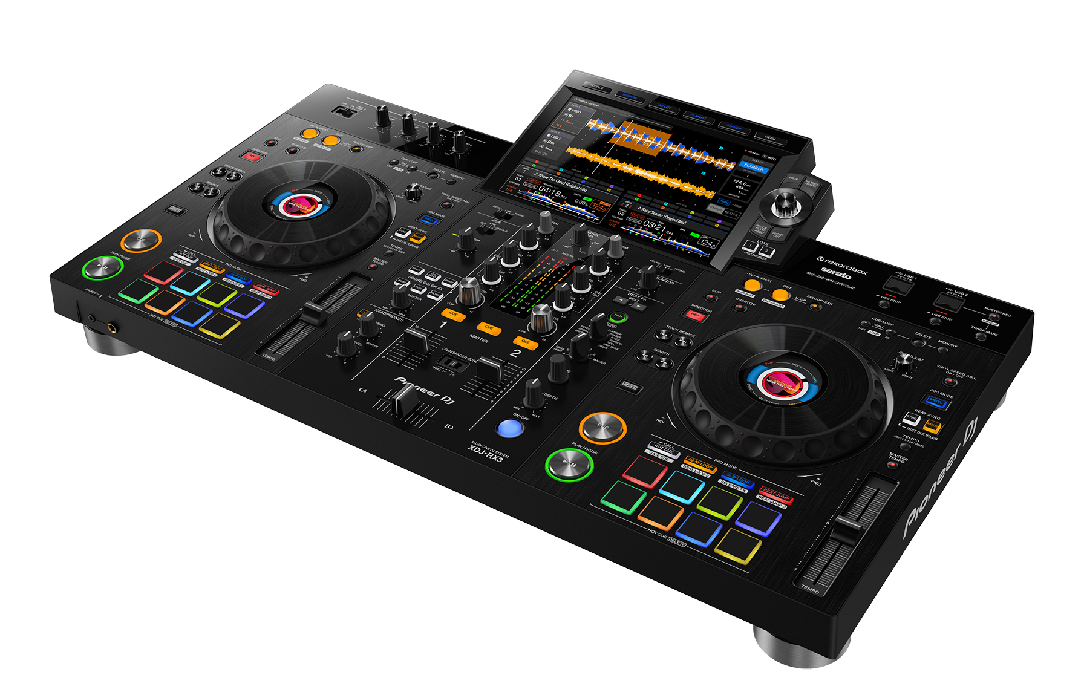

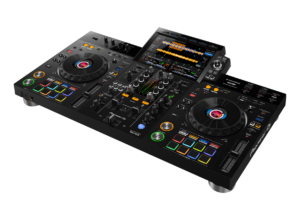

The AlphaTheta XDJ-RX3 is an industry-standard, 2-channel all-in-one DJ system that bridges the gap between home studios and club booths. Whether you are a professional performing mobile sets or a bedroom enthusiast, keeping this flagship device running optimally is essential. For expert diagnostics, component replacements, and comprehensive maintenance in Southern California, Repair DJ Gear in Costa Mesa, Orange County, CA, provides elite-tier service and professional repairs.
Core Functions & Features
The XDJ-RX3 boasts robust performance features designed to mirror a club-standard CDJ-3000 and DJM-900NXS2 setup: [5]
- 10.1-Inch Touch Screen: High-resolution display featuring a high frame rate for smooth browsing and precise waveform viewing.
- Color On-Jog Display: In-jog LCD screens providing track position, artwork, and crucial timing information.
- Performance Pads: 8 multi-colored pads per deck unlocking Hot Cues, Beat Loop, Slip Loop, and Beat Jump.
- Standalone Flexibility: Dual USB ports for multi-DJ handovers and laptop-free performances driven by rekordbox or Serato DJ Pro.
Common Faults & System Issues
Despite its professional build quality, prolonged usage and demanding club environments can introduce software or hardware failures:
1. Software Lag and Total System Freezing
- Symptom: The user interface lags heavily during long sets (typically after 2 hours) or completely freezes, sometimes resulting in an emergency audio loop.
- Cause: Data bottlenecking from corrupted media files, overheating USB flash drives, or outdated firmware versions.
- Solution: Keep your equipment COOL!
2. Mechanical Jogs and Button Failures
- Symptom: Physical buttons lose tactile feedback, or the jog wheels experience position-tracking errors and intermittent vinyl mode failures.
- Cause: Dust buildup, fluid spillage, heat damage or physical micro-switch fatigue from aggressive cueing and performance scratching. Bass music DJs are the hardest on equipment.
- Solution: Full rebuild of jog wheels includes new rollers, internal slip rings and electrical sheet ring. Button plastics need to be replaced as well as the tactile switches.
3. Channel Fade and Audio Dropouts
- Symptom: Complete signal loss on an individual channel or intermittent volume drops when nudging the channel faders.
- Cause: Accumulation of dust/liquid or complete internal potentiometer degradation over time.
- Solution: More often than not, new channel faders need to be replaced. Their design is a friction contact slide potentiometer. The mechanical life cycle of a slide potentiometer typically ranges from 10,000 to 200,000 complete slide cycles, depending on the quality of the resistive material and wiper design. We offer higher life cycle parts.
4. Mixer EQ Adjustment Audio Dropouts
- Symptom: Intermittent signal loss on an individual Hi/Mid/Low EQ rotary pots when touching or twisting rotary pots.
- Cause: Accumulation of dust/liquid or complete internal potentiometer degradation over time. Also, cracked solder joints and damaged circuit board trace circuits.
- Solution: Depending on failure, reflow of solder and or replacement of parts.
Commonly Replaced Parts & Part Numbers
When components eventually wear out or fail, sourcing correct OEM part numbers ensures precise electrical and structural alignment:
| Component Description | OEM Manufacturer Part Number |
|---|---|
| Main Board Assembly (Main PCB) | DWX4531 / DWX4869 |
| Replacement Touch Screen Module | DSX1151 |
| Audio Output Board (AOUT Assy PCB) | DWX4543 |
| Play-Pause / Cue Tactile Switches | DSG1153 |
| Channel Fader Slide Potentiometer | DCV1027 |
| Low, Mid, and High EQ Rotary Knob | DAA1305 |
Professional Repair Services in Orange County, CA
Do not let a glitchy fader or a frozen screen ruin your next gig. Internal digital DJ mixers require specialized knowledge, steady soldering skills, and static-safe handling areas to fix properly.
If you are experiencing issues with your unit, Repair DJ Gear can help. Located at 365 Clinton Street, Suite A, Costa Mesa, CA their expert engineering team performs complete diagnostic overhauls, liquid damage recovery, mainboard swaps, and standard tactile switch updates. Reach out to their technical desk at (714) 868-7280 to schedule your bench diagnostic.
