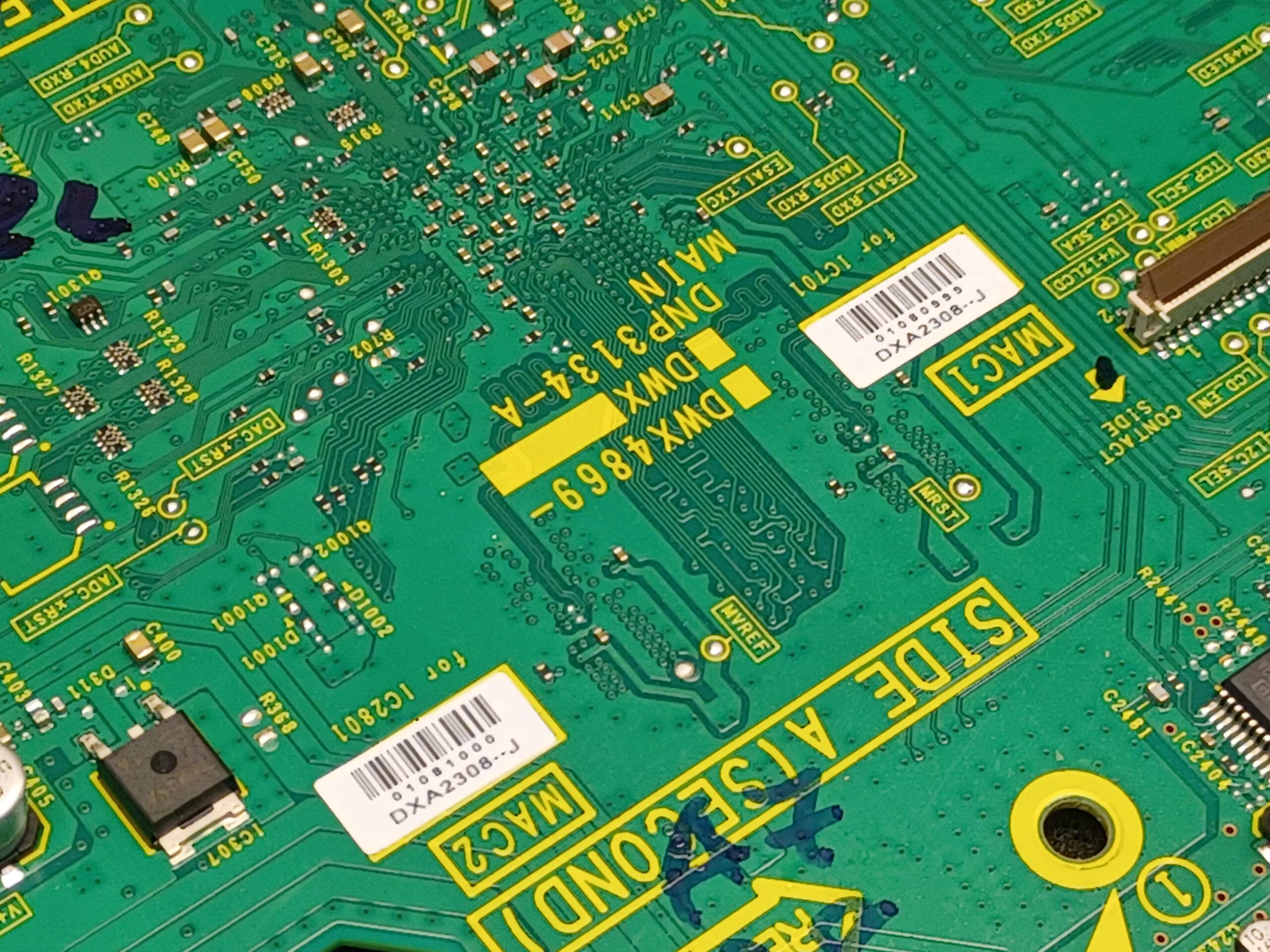

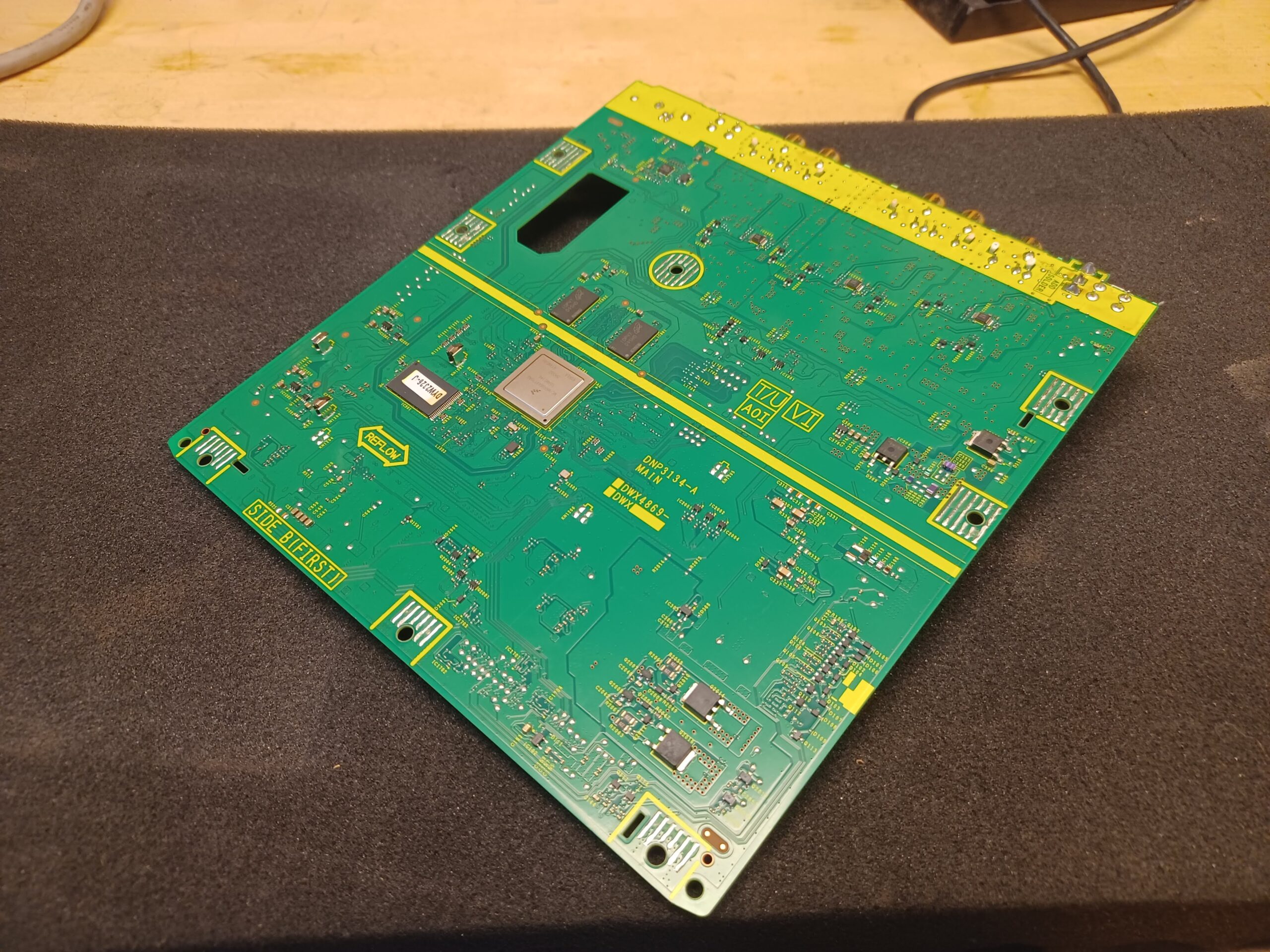

Pioneer XDJ-RX3 Main Board – DWX4869

Name: Pioneer XDJ-RX3 Main Board - DWX4869
SKU: 24799
Availability: InStock

$330.00

Category: Pioneer

Description

Used DWX4869. 100 % Works. Pulled from damaged unit. No warranty.
Pioneer XDJ-RX3 main board (DWX4869) specifications and features.

Channels: The XDJ-RX3 is a 2-channel all-in-one DJ system.
Inputs/Outputs: The mainboard facilitates connectivity for various audio inputs and outputs, including:
- Analog Inputs: 2x Stereo 2RCA Coaxial Line Input, 2x Stereo 2RCA Coaxial Phono Input, 2x Combo XLR-1/4″ TRS Mic Input, 1x Stereo 2RCA Coaxial Aux Input, 1x 1/8″ / 3.5 mm TRS Aux Input.
- Analog Outputs: 2x XLR (master 1), 1x Dual Stereo RCA (master 2), 2x 1/4″ (booth), 1x 1/4″ TRS Headphone Output, 1x 1/8″ / 3.5 mm TRS Headphone Output.
- USB: 2x Type A, 1x Type B.
- MIDI I/O: USB.
Audio Quality: The XDJ-RX3 main board contributes to the overall sound quality, boasting a 24-bit A/D converter, 44.1 kHz sampling rate, > 101 dB signal-to-noise ratio, and < 0.003% distortion (USB).
Audio Design: The circuit board’s audio design is optimized for clear sound reproduction.
Microphone Input Circuit: This circuit is designed to produce crystal-clear sound, even with a high input level.
Other Features:
- 3 x USB ports: Facilitates back-to-back performances and smooth handovers between DJs.
- Supports rekordbox DJ software and Serato DJ Pro software: Pioneer DJ reports the XDJ-RX3 now officially supports Serato DJ Pro, allowing you to use it as a controller for the software.

Troubleshooting and replacement

Issues: Users have reported issues like device freezes and USB port malfunctions.
Potential Solutions: Updating the firmware and cleaning the USB port may resolve some USB issues.
Replacement: If the XDJ-RX3 mainboard needs replacement, authorized service centers and distributors may offer the DWX4869 as a spare part. It is important to confirm compatibility with your XDJ-RX3 model before purchasing a replacement board.
